Four gaskets, and a stove that cannot run with one missing

Pellet stove seals, and the four places they live

A pellet stove runs under a slight depression created by its extraction fan, which means a leaking gasket does not smoke into the room — it makes the stove burn wrong, and the fault shows up as an error code rather than as smoke. There are four sealing points and the shelf covers all of them. The door gasket is rope or flat tape, sized by diameter or by width and thickness. The glass gasket is flat tape, usually self-adhesive, and is the one most often damaged during a glass change. The ash-pan or ash-drawer seal is flat and is the one people forget exists. And the extraction fan gasket, a die-cut shape specific to the fan housing, which is the only one of the four that is genuinely model-specific and the only one where a universal product is the wrong answer. The figures are the dimensions, the material — glass fibre for the hot positions, silicone or ceramic paper for the fan flange — and the temperature rating, which the serious sellers publish and which separates a gasket that lasts a season from one that lasts five. We compare type, material, inside diameter, outside diameter, height, quantity, colour and temperature.

These parts, set out figure by figure

1.

   LANZZAS Pellet Pipe Silicone Lip Seal, Ø 80 mm

   A replacement lip seal for 80 mm pellet pipe — stated for internal sockets only, and for flue gas below 160 °C.

   Type

   Silicone lip seal for pellet pipe · The listing image is stated to show the inside and outside faces of the seal

   Material

   The maker does not state it.

   Inside diameter

   Ø 80 mm

   Outside diameter

   The maker does not state it.

   Height

   Not published

   Quantity

   1 piece · By post as a small item; by parcel above six pieces

   Colour

   The maker does not state it.

   Temperature

   Stated only for seals that lie inside a socket · Stated suitable for almost all common pellet stoves with a flue gas temperature below 160 °C

   Amazon reference

   B07F83QCGX (one reference across 5 Amazon marketplaces)

   EAN

   4251586704998

   • States the fitment constraint — internal sockets only — which nothing else on this shelf does
   • Publishes the flue gas temperature it is suitable below, which is the figure that governs this whole category
   • Sold as one piece, where two listings here supply five

   Best for: Replacing one failed seal on an 80 mm pellet flue whose sockets are internal

   Check price on Amazon
2.

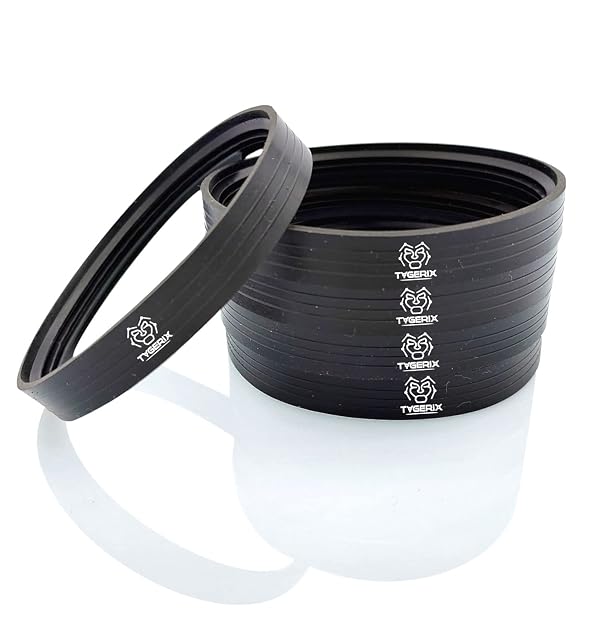

   Tygerix Triple-Lip Silicone Seals DN 100, 5-Pack

   Five triple-lip seals at 12 mm high, each individually tested and marked — and the only listing here that states which way round they go.

   Type

   Three-lip silicone seals

   Material

   Each seal stated to be individually tested and marked with the maker’s logo · Stated compliant and certified to the main European and international standards — none named

   Inside diameter

   DN 100

   Outside diameter

   The maker does not state it.

   Height

   12 mm — the only seal height published on this shelf

   Quantity

   5 pieces

   Colour

   Black

   Temperature

   Insert into the seat of the pipe in the female part, with the three ribs pointing towards the inside of the pipe, stated

   Amazon reference

   B0BZ4WRNH1 (one reference across 5 Amazon marketplaces)

   EAN

   8053307803623

   • States the fitting orientation explicitly, which is what makes a lip seal work
   • Publishes the seal height, which decides whether it fills the groove
   • Claims compliance with the main European and international standards without naming one

   Best for: Resealing a complete DN 100 pellet flue run in one go, with the orientation printed on the listing

   Check price on Amazon
3.

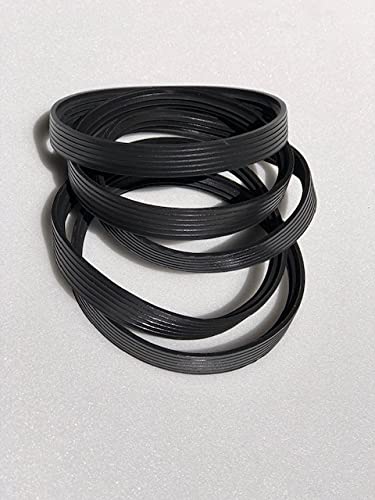

   Nova italf Silicone Seals for Pellet Stoves, 5 Pieces

   Five silicone seals rated to 200 °C and made from polymer mixtures declared under REACH — with no diameter published anywhere.

   Type

   Stated to give a driving-rain-tight joint and pressure resistance

   Material

   Silicone, formed from non-toxic polymer mixtures · Stated made in accordance with European regulation EC 1907/2006 (REACH)

   Inside diameter

   Not published

   Outside diameter

   The maker does not state it.

   Height

   The maker does not state it.

   Quantity

   5 pieces

   Colour

   Black

   Temperature

   200 °C — the highest figure published on this shelf · Fireplaces, chimneys, boilers and pellet stoves

   Amazon reference

   B09BJZM1ZY (one reference across 6 Amazon marketplaces)

   EAN

   0731722103211

   • Publishes a maximum operating temperature, which two of the five listings here do not
   • Names the regulation the polymer mixture is declared under
   • No diameter published — on a seal, that is the specification

   Best for: A buyer who already knows the size needed and wants a published temperature and a named regulation

   Check price on Amazon
4.

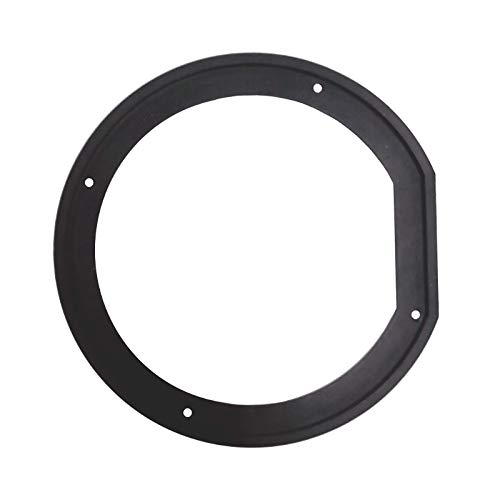

   Easyricambi Extraction Fan Gasket, 136 / 175 mm

   Not a pipe seal at all — a 136/175 mm silicone flange gasket for the extraction fan, identified by the fan models it fits.

   Type

   A flange gasket for a flue extraction fan — not a pipe lip seal · Named extraction fan models, with a stove maker’s part reference

   Material

   AT silicone rubber

   Inside diameter

   136 mm

   Outside diameter

   175 mm

   Height

   The maker does not state it.

   Quantity

   1 piece

   Colour

   Black

   Temperature

   4 holes

   Amazon reference

   B07HVLSCPG (one reference across 5 Amazon marketplaces)

   EAN

   8944605836287

   • Identified by the fan models it fits, which is the correct way to specify a flange gasket
   • Publishes both diameters and the hole count, so it can be checked against the old one
   • It is a different component from everything else on this shelf and does not replace a pipe seal

   Best for: A pellet stove whose extraction fan has started leaking at the flange, matched by the fan’s own model number

   Check price on Amazon
5.

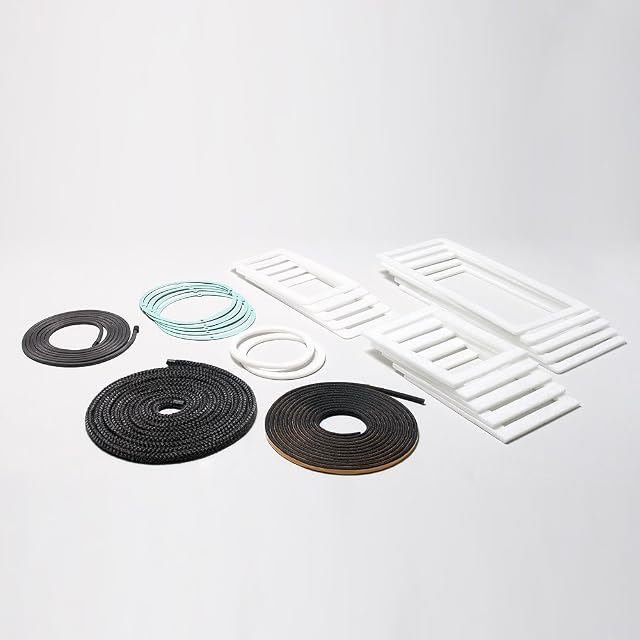

   MCZ S.p.A. Seal Set for Pellet Stoves

   A stove manufacturer’s complete seal set, published in three lines — one of which is the word “seals” — with no list of what is in it.

   Type

   A seal set from the appliance manufacturer

   Material

   Not published

   Inside diameter

   The maker does not state it.

   Outside diameter

   The maker does not state it.

   Height

   Not published

   Quantity

   Not published — no list of what the set contains · Around ten times the cost of the individual seals on this shelf

   Colour

   The maker does not state it.

   Temperature

   Three: the set name, the word seals, and the company name · Not published · Not published

   Amazon reference

   B01MZIEY6S (one reference across 4 Amazon marketplaces)

   EAN

   4250930154847

   • An original set from the appliance manufacturer rather than a generic part
   • A set rather than a single seal, so a service is done in one order
   • Three published features, one of which is the single word seals

   Best for: A service on one of this maker’s own appliances, ordered through the manufacturer’s part number
