Diameter decides what fits, wall gauge decides how long it lasts

Stove pipes, compared on the two numbers that matter

A stove pipe is the visible length between the appliance and the chimney, and it is bought on three figures of which listings print one. The nominal diameter — 80, 100, 120, 130, 150, 180 and 200 mm are the sizes that exist — is printed on everything and is what makes parts fit each other. The wall gauge is printed by roughly half the sellers and is what decides whether the pipe lasts five winters or twenty: 0,6 mm is the common domestic gauge, 2 mm exists for the heavy cast-look ranges, and the difference is visible only in a specification line. The length is obvious but worth reading against the adjustable sections, because a run made of one fixed length and one telescopic section is far easier to dismantle for sweeping than a run cut to size. Then the finish: senotherm-painted steel in the usual greys and blacks, raw steel meant to be painted, or enamelled. Enamel does not need repainting and cannot be repaired; painted steel is the opposite on both counts. Finally the thing this shelf hides: which end is the socket. Pipes must be assembled so the flow runs male into female downward, and a listing that does not say which end is which is a listing that will be measured with a tape on arrival. We compare diameter, length, material, coating, joint, temperature, soot fire and standard.

These parts, set out figure by figure

1.

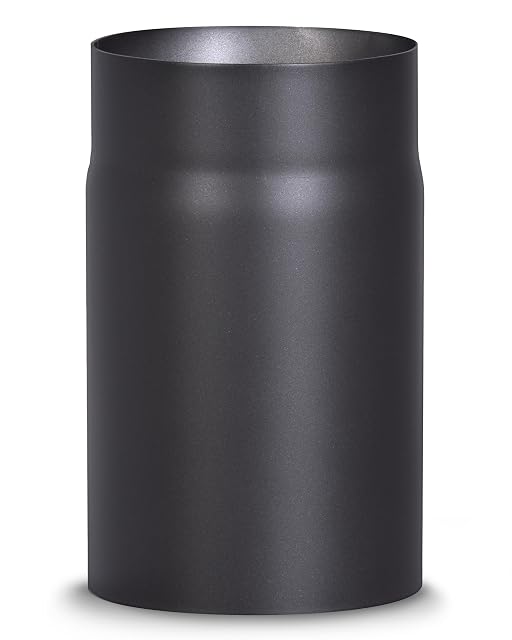

   FIREFIX R150/2 Stove Pipe, Ø 150 × 250 mm

   Two-millimetre steel with an internal socket, tested to DIN EN 1856-2 and finished in a solvent-free water-based lacquer.

   Diameter

   Ø 150 mm · Internally socketed, stated combinable with the maker’s other stove pipes

   Length

   250 mm

   Material

   Steel sheet, 2 mm thick

   Coating

   Solvent-free, water-based, high-temperature-resistant and smoke-free lacquer, stated

   Joint

   The maker does not state it.

   Temperature

   No figure given

   Soot fire

   The maker does not state it.

   Standard

   Tested and approved to DIN EN 1856-2:2009 · Stated to cover rigid and flexible metal inner pipes, rigid connectors and rigid fittings

   Amazon reference

   B013OVAD94 (one reference across 6 Amazon marketplaces)

   EAN

   4017537301162

   • Describes the lacquer’s chemistry, which nothing else on this shelf does
   • Names the standard with its year and says what that standard covers
   • No temperature figure, where three listings on this shelf publish 600 °C

   Best for: Adding or replacing a section in an existing run of this maker’s own pipe

   Check price on Amazon
2.

   rg-vertrieb Stove Pipe, Ø 150 × 250 mm

   Plasma-welded 2 mm steel rated T600 and soot-fire resistant — and the one listing here that says the pipe can be shortened.

   Diameter

   Stated that the pipe can be shortened if required

   Length

   Ø 150 mm, 250 mm long

   Material

   2 mm steel sheet, with plasma-welded longitudinal seams stated to leave no visible beads

   Coating

   Senotherm heat-resistant lacquer in black, stated for the visible living area

   Joint

   Drawn at one end, so it pushes into elements of the same diameter

   Temperature

   The maker does not state it.

   Soot fire

   Stated soot-fire resistant

   Standard

   EN 1856-2 / DIN 1298, approved for flue gas temperatures to 600 °C (T600) · All solid fuels — wood, coal, briquettes

   Amazon reference

   B07Z3P9FXC (one reference across 3 Amazon marketplaces)

   EAN

   5902808425069

   • States that the pipe may be shortened, which nothing else on this shelf addresses
   • Publishes the temperature class T600 rather than a bare number
   • Shortening removes the drawn end at one side, which the listing does not mention

   Best for: A run where the last section has to be cut to length between the stove and the wall

   Check price on Amazon
3.

   LANZZAS Stove Pipe Extension, Ø 150 mm

   Two millimetres of steel in black or cast grey, with its full designation under the named standard printed on the listing.

   Diameter

   Ø 150 mm

   Length

   Not published

   Material

   Steel, 2 mm thick · Black or cast grey

   Coating

   Senotherm heat-resistant lacquer, stated to 500 °C, in black or cast grey

   Joint

   The maker does not state it.

   Temperature

   The maker does not state it.

   Soot fire

   The maker does not state it.

   Standard

   CE, tested to DIN EN 1856-2 · Printed in full: 0036CPR91405001, T600 N1 D Vm L01200 G450 NM · Packed in a carton

   Amazon reference

   B07DL9KC4G (one reference across 5 Amazon marketplaces)

   EAN

   4251586701973

   • Prints the whole designation under the standard, not just a claim of certification
   • Two colours, so the pipe can match an existing run rather than contrasting with it
   • No length published, on a product sold as an extension

   Best for: Matching an existing run where the designation has to be quoted to somebody

   Check price on Amazon
4.

   raik Stove Pipe, Ø 150 mm, 500 mm

   Half a metre of 2 mm alloyed steel with a baked-on Senotherm finish and a smooth inner surface, rated to 600 °C.

   Diameter

   150 mm — stated as the inner, not the outer

   Length

   500 mm

   Material

   Single-wall alloyed steel sheet, 2 mm · Smooth, stated to support unhindered flue gas flow · Made in the EU

   Coating

   Baked-on Senotherm, stated to protect against corrosion and give a matt, unobtrusive surface

   Joint

   Precisely made push-fit connections, stated to give a tight and secure wall connection

   Temperature

   Up to 600 °C, stated without deformation or damage

   Soot fire

   The maker does not state it.

   Standard

   The maker does not state it.

   Amazon reference

   B00TU85580 (one reference across 2 Amazon marketplaces)

   EAN

   4260405761104

   • States that the 150 mm figure is the inner diameter, which decides whether it matches the appliance collar
   • Names the inner surface as a working feature, which nothing else on this shelf does
   • No standard named and no declaration reference, where three listings on this shelf give one

   Best for: A longer straight run where fewer joints matter more than a printed designation

   Check price on Amazon
5.

   Tecnovis Pellet Stove Pipe, Ø 80 mm, 500 mm

   Nought point four millimetres of 316L stainless with an internal seal — a different product from everything else on this shelf, for a different kind of flue.

   Diameter

   Ø 80 mm, 500 mm

   Length

   The maker does not state it.

   Material

   Stainless 1.4404 (316L), 0.4 mm thick · Heat-resistant silicone paint · A German brand manufacturer, stated

   Coating

   The maker does not state it.

   Joint

   Push-fit with an internal seal, stated to stop pellet dust reaching the living area

   Temperature

   Pressure-tight to 200 Pa

   Soot fire

   Stated soot-fire resistant and insensitive to moisture

   Standard

   For connection to pellet stoves in living and visible areas

   Amazon reference

   B0DXL6SRVY (one reference across 5 Amazon marketplaces)

   EAN

   4057054113015

   • Names the steel grade in full, which no other pipe on this shelf does
   • An internal seal, which is what a fan-driven pellet flue actually needs
   • Nought point four millimetres against 2 mm everywhere else here — a different construction entirely

   Best for: A pellet appliance in a living room, where a sealed joint is the difference between clean air and dust
