A plate in the pipe, and the hole that must stay in it

Flue dampers, and the opening they may never fully close

A damper is a plate in the pipe that restricts the flow, and it is the cheapest correction for a flue that pulls too hard — a stove that burns its load in an hour is usually a draught problem rather than a fuel one. Two different products share this shelf and the difference matters. A throttle damper is a manual plate on a handle, set by hand and left; a draught regulator is a weighted flap that opens automatically when the depression exceeds a set value, admitting room air to stabilise the flue. The first is a setting, the second is a control. The figures are the diameter, the adjustment range, and — for regulators — the depression in pascals at which the flap begins to open, which is the only figure that lets two of them be compared. Then the one thing every page here reports because it is a safety point rather than a preference: the permanent opening. A throttle plate is manufactured with a cut-out or a stop so that it cannot close the flue completely, and a plate that can is not a stove damper. We compare type, diameter, material, form, control range, coating, temperature and standard.

These parts, set out figure by figure

1.

   LANZZAS Stove Pipe Damper, Ø 150 mm

   A standalone butterfly damper for retrofitting into an existing 150 mm pipe — sold on its title alone, with no features published.

   Type

   A butterfly damper — a hand-operated plate inside the pipe · The title calls it a draught limiter, which is the name of a different device on this shelf

   Diameter

   Ø 150 mm

   Material

   Black · Not published

   Form

   The maker does not state it.

   Control range

   The maker does not state it.

   Coating

   The maker does not state it.

   Temperature

   The maker does not state it.

   Standard

   For retrofitting into an existing pipe, from the title · None — the listing carries no feature text · Not published

   Amazon reference

   B0B31NSBMV (one reference across 4 Amazon marketplaces)

   EAN

   4251586731383

   • Sold on its own, so an existing pipe run does not have to be replaced to gain a damper
   • The cheapest item in this family by a wide margin
   • No published features at all — no material, no fitting method, no plate design

   Best for: Adding a damper to a pipe run that already exists, by somebody who knows how one is fitted

   Check price on Amazon
2.

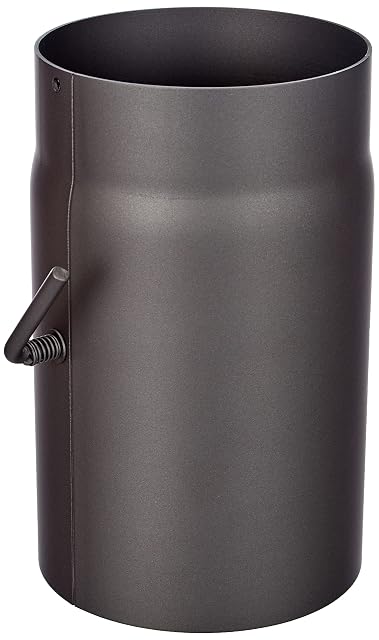

   Kamino-Flam Stove Pipe with Damper, 150 × 250 mm

   A 250 mm section of 2 mm pipe with the damper already built in — the shortest way to add one without drilling anything.

   Type

   The maker does not state it.

   Diameter

   The maker does not state it.

   Material

   Steel, approximately 2 mm thick · Cast grey

   Form

   A stove pipe section with the damper already fitted · One pipe with damper

   Control range

   Stated to reduce or increase the chimney draught

   Coating

   Heat-resistant Senotherm, stated ideal for strong temperature swings

   Temperature

   No figure given

   Standard

   Approximately Ø 150 mm × 250 mm long

   Amazon reference

   B0045BXO8U (one reference across 5 Amazon marketplaces)

   EAN

   4009977484383

   • The damper arrives already fitted, so nothing has to be drilled
   • The shortest section on this shelf at 250 mm, so it takes little out of a run
   • Two millimetres of pipe and no temperature figure published

   Best for: Adding a damper to a run being assembled now, in the least length possible

   Check price on Amazon
3.

   EnergieWerk Ost GmbH Stove Pipe with Damper, Ø 150 mm, 50 cm

   Half a metre of ST-12 CE steel with a damper, certified to DIN EN 1856-2 to 600 °C — and stated to be touched up if scratched.

   Type

   The maker does not state it.

   Diameter

   The maker does not state it.

   Material

   2 mm single-wall steel sheet, ST-12 CE · Made in Germany since 1887, stated

   Form

   A 500 mm pipe section with a damper built in · Drawn at one end, so sections push together

   Control range

   Designed for dry operation, frost- and freeze-thaw-resistant · The damper acts as a draught limiter, optimising airflow and the burn

   Coating

   Senotherm in black or cast grey, stated soot-resistant and touchable-up if scratched

   Temperature

   The maker does not state it.

   Standard

   DIN EN 1856-2 for liquid and solid fuels, usable to 600 °C

   Amazon reference

   B00I4VWG2M (one reference across 2 Amazon marketplaces)

   EAN

   4260350119753

   • Names the steel grade and the standard, with a temperature to go with them
   • States that scratches can be touched up, which is the one repair a coated pipe allows
   • Calls the damper a draught limiter, which is the name of the other device on this shelf

   Best for: A standard 500 mm module in a run that needs a damper and a documented pipe

   Check price on Amazon
4.

   raik Stove Pipe with Draught Control, Ø 150 × 1,000 mm

   A full metre of 2 mm alloyed steel with the draught control built in — the longest damper section on this shelf.

   Type

   The maker does not state it.

   Diameter

   150 mm, stated as the inner measurement · 1,000 mm — the longest on this shelf

   Material

   Single-wall alloyed steel, 2 mm · Smooth, stated to support unhindered flue gas flow · Made in the EU

   Form

   A 1,000 mm pipe section with draught control built in

   Control range

   The maker does not state it.

   Coating

   Baked-on Senotherm, matt

   Temperature

   Up to 600 °C, stated without deformation

   Standard

   The maker does not state it.

   Amazon reference

   B00TU84YMI (one reference across 2 Amazon marketplaces)

   EAN

   4260405761180

   • A full metre with the control already in it, so a long run needs one fewer joint
   • States that 150 mm is the inner diameter, which decides whether it matches the collar
   • No standard named and no declaration reference

   Best for: A tall run where a metre of pipe is needed anyway and the control comes with it

   Check price on Amazon
5.

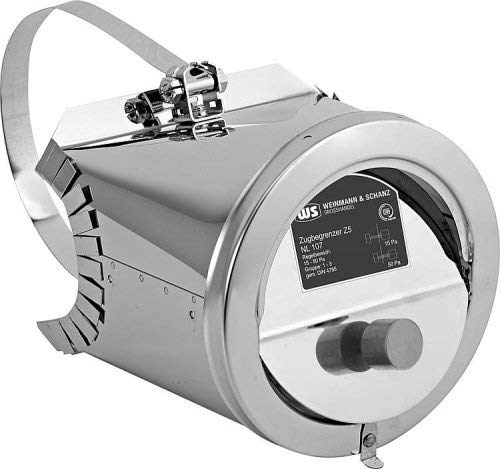

   Evenes Z 5E Draught Limiter, 110–200 mm

   A self-acting secondary air device to DIN 4795, adjustable from 15 to 50 pascals and adaptable to any flue from 110 to 200 mm.

   Type

   A self-acting secondary air device — it admits room air, it does not restrict the flue · Type Z 5E · Automatic — no handle to set while the fire is alight

   Diameter

   The maker does not state it.

   Material

   V2A stainless steel

   Form

   1–3

   Control range

   15–50 Pa

   Coating

   The maker does not state it.

   Temperature

   The maker does not state it.

   Standard

   DIN 4795, stated · Rosette segments allowing stepless adaptation to flue diameters of 110–200 mm

   Amazon reference

   B07PKGYF3B (one reference across 5 Amazon marketplaces)

   EAN

   4260638051256

   • The only listing on this shelf to publish a control range, and it publishes it in pascals
   • Names the standard the device is built to
   • It admits room air, which is heated air leaving the house

   Best for: A chimney that pulls too hard — too tall, too warm, too exposed — where the excess has to be relieved rather than blocked

   Check price on Amazon
6.

   Upmann Z 6 Draught Limiter, V2A, 180 mm

   A 180 mm V2A stainless draught limiter, type Z 6, published in three lines — one of which is simply the words “building material”.

   Type

   A draught limiter, type Z 6

   Diameter

   180 mm

   Material

   V2A stainless steel

   Form

   Not published

   Control range

   Not published

   Coating

   The maker does not state it.

   Temperature

   The maker does not state it.

   Standard

   Three: a repeat of the title, the word building material, and the brand name misspelled · Not named · Not described

   Amazon reference

   B00FJIHEE8 (one reference across 3 Amazon marketplaces)

   EAN

   4005046302626

   • A large 180 mm spigot, which suits a flue wider than most domestic pipe
   • V2A stainless, the same material class as the better-specified limiter on this shelf
   • No control range, which is the setting a draught limiter exists to have

   Best for: A 180 mm flue where this maker’s type designation is already known

   Check price on Amazon
7.

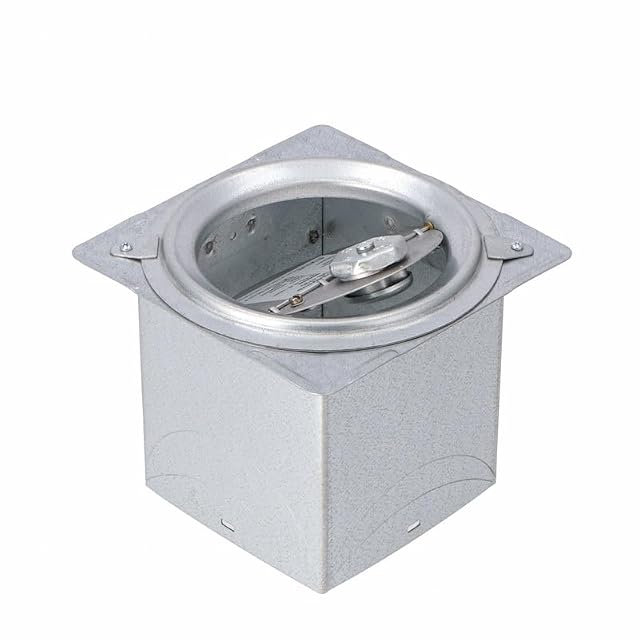

   Dragex Universal Draught Limiter, Ø 130–200 mm

   A universal limiter for 130 to 200 mm flues, with the clearest one-line explanation of what these devices are for.

   Type

   Universal draught limiter · Stated: draught limiters are self-acting secondary air devices, serving to reduce excessive negative pressure in the chimney · 900402

   Diameter

   Ø 130–200 mm

   Material

   Not published

   Form

   The maker does not state it.

   Control range

   Not published

   Coating

   The maker does not state it.

   Temperature

   The maker does not state it.

   Standard

   Two · Not named

   Amazon reference

   B07F412PK1 (one reference across 3 Amazon marketplaces)

   EAN

   4260609963687

   • Publishes the clearest statement in this family of what a draught limiter actually does
   • A universal fitting across 130 to 200 mm, so the flue size is unlikely to exclude it
   • The most expensive item on this shelf, with the least published about it beyond its principle

   Best for: A buyer who has already established the setting needed and wants a fitting that will go on almost anything

   Check price on Amazon
